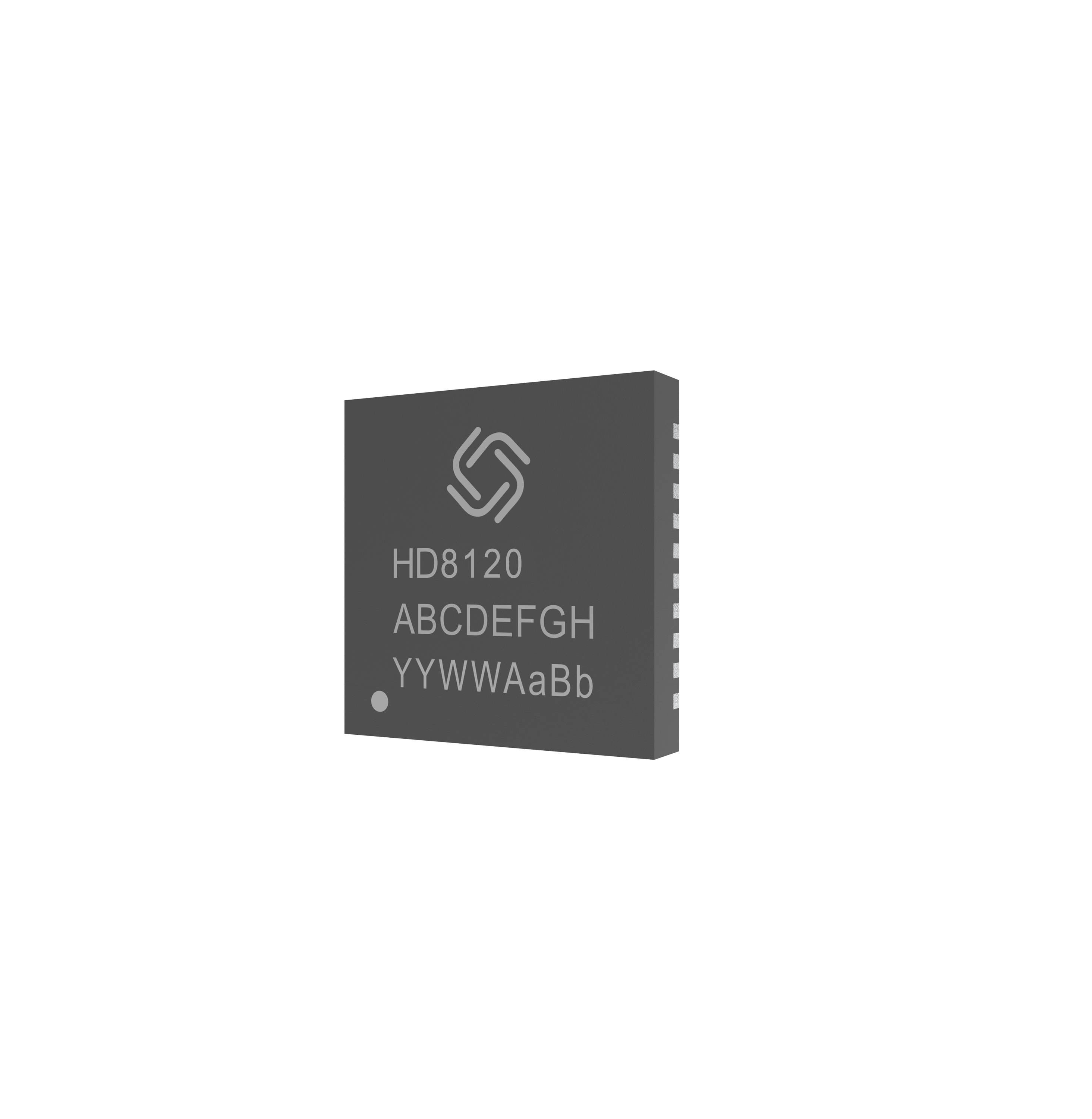

HD8120 series

CYNOSURE Ⅲ LITE GNSS Chip

• Concurrent GNSS reception
• Low power consumption
• ARM Cortex-M4F processor with cache controller
• Smart jammer detection and suppression
• Intelligent power control mechanism
• Single supply with wide voltage range

Further Products




ALLYSTAR HD8120 series, based on the CYNOSURE III Lite architecture, is a high-performance single chip GNSS solution. This series supports GPS, BeiDou, Galileo, GLONASS, QZSS and SBAS, and can concurrently process GLONASS or BeiDou with GPS and Galileo signals, thereby providing reception of three GNSS systems. The newly designed architecture is optimized in positioning and power-saving performance for industrial and portable applications. The highly integrated architecture brings full positioning functionality, from antenna input to position data output, in a self-contained solution that requires less external components.

HD8120 series targets for the location awareness and logistic transportation markets, widely used in shared bike, wearable device, unmanned aerial vehicle, vehicle management, unmanned driving, car navigation, marine navigation, and other fields.
